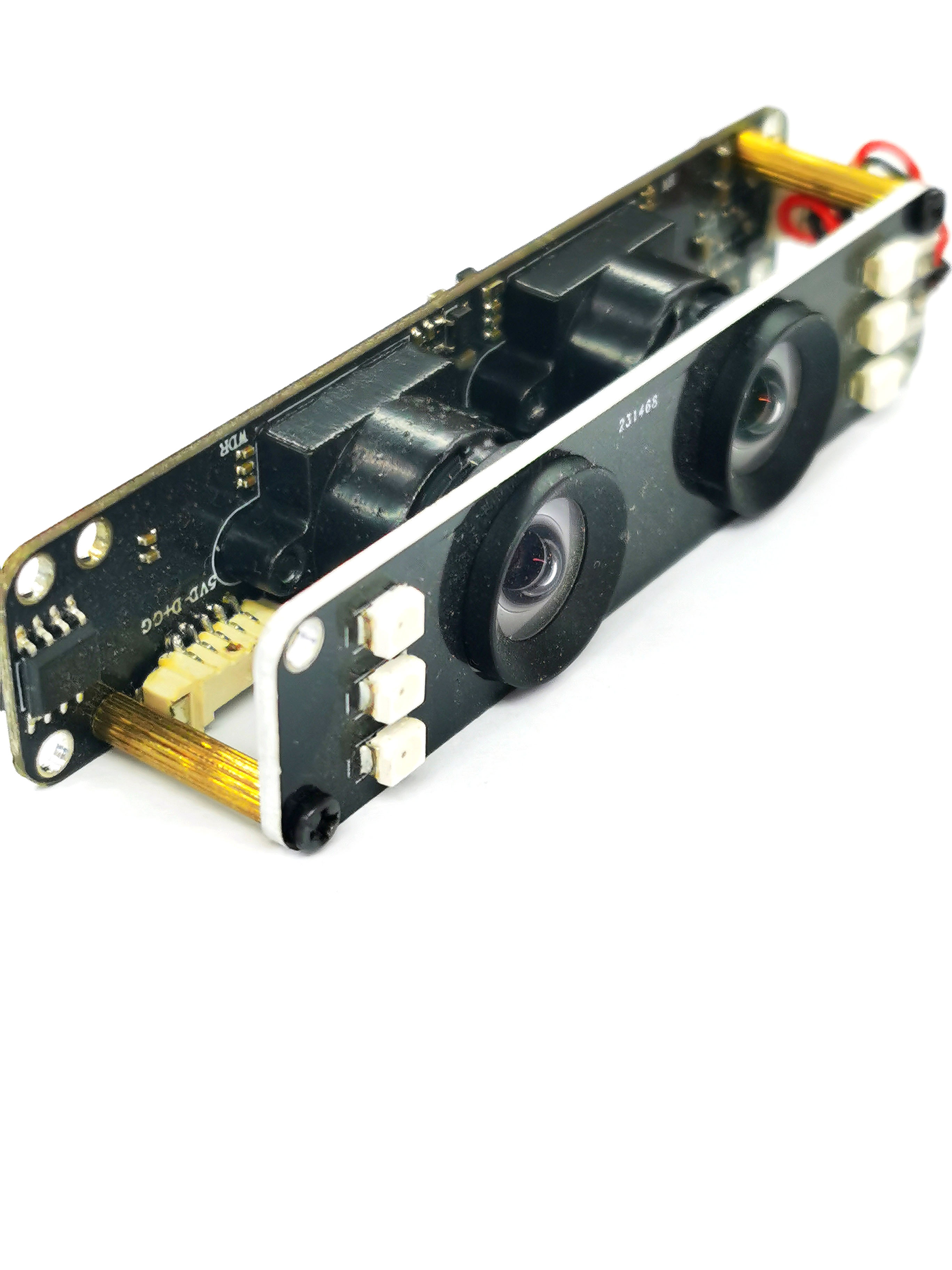

1M Dual Lens Camera Module for Face Recognition
1.Overview
This product is a professional 1M binocular lens camera module specially designed for industrial applications. The rated input voltage is DC 5V, and it can work normally between DC 4.2V-5.5V. Through the USB standard interface, it can be connected with personal computers, Android devices, etc., to carry out master-slave half-duplex serial communication.
Product features: 1. Compliant with USB2.0 specification, backward compatible with USB
1.1, compliant with UVC specification
2. Wide voltage range, DC4.2V~5.5V
3. Camera-side firmware can be customized to meet communication requirements
4. The power consumption of the whole machine is low, 5V@240mA (including infrared light)
5. Occupies less USB bandwidth
5. Communication protocol
1. communication requirements
2. Communication Protocol
1.way of communication
Adopt USB2.0 protocol. The host (referring to PC, Android, linux and other devices) acts as the host, and the slave (referring to the camera) acts as the Device. All requests must be initiated by the Host and the Device itself decides whether to give the correct response. Working mode: the camera is inserted into the host USB, power is supplied to the camera through the USB, the camera is initialized, and the host sends a request to obtain the camera hardware ID and other information, if the information is correct, then the host opens AMCAP, and the camera starts to work normally.
6、Mechanical characteristics and connector definition （Unit：mm）
1、Dimension
Max：80×16×18 （L×W×H）mm (customization available)
Installation:horizontal installation,please pay attention to the debugging angle and height.
1、Module structure：
