5MP USB Camera Module with CMOS Omnivision OV5640
Description
Reviews
Model: MT-USB500W04AF-L60
Features:
*5 Megapixel USB Board Camera
*High resolution 2592x1944 5MP OV5640 USB Camera
*1/4” CMOS OV5640 USB Camera Module
*YUY and MJPEG compression format USB Webcam
*30x25mm Mini size micro USB Camera for industrial Camera
*Android&Linux&windows system support
*High speed USB 2.0 interface Webcam
*HD Megapixel free driver Cmos Camera Module for UVC system
*UVC for use inWin XPWin7Win8AndroidLinuxMac OS
*Mini size suitable for embed into mini size device
Specifications:
Model: MT-USB500W04AF-L60
Item: 5MP mini Micro USB camera module
Resolution & FPS:
| 2592x1944@ 15fps MJPEG | 2048x1536@ 15fpsMJPEG |
| 1600x1200@ 15fps MJPEG | 1920x1080@ 15fps MJPEG |
| 1024 x 768@ 30fps MJPEG | 1280x720@ 30fps MJPEG |
| 1024 x 768@ 30fps MJPEG | 800 x 600@ 30fps MJPEG |
| 640x480@ 30fps MJPEG | 320x240@ 30fps MJPEG |
Sensor: Omnivision OV5640
Connecting Port Type: USB2.0 High speed
Sensor Size: 1/4 inch
Support free driver: USB Video Class(UVC)
Pixel Size: 1.4µm x1.4µm
Shutter Type: Electronic rolling shutter/ Frame exposure
Max. Resolution: 2592 (H) *1944 (V)
AEB AEC: Support
Picture format: MJPEG or YUY2(YUYV)
AGC: Support
Lens Parameter: Fixed lens
FOV: 65Degree
IR Filter: 650±10nm
Adjustable parameters: Brightness/Contrast/Saturation,Hue, Sharpness,Gamma, Exposure White balance,Backlight Contrast
Cable: Standard 1m / Optional 2m,3m,5m
work temperature: DEGREES(-20~70)

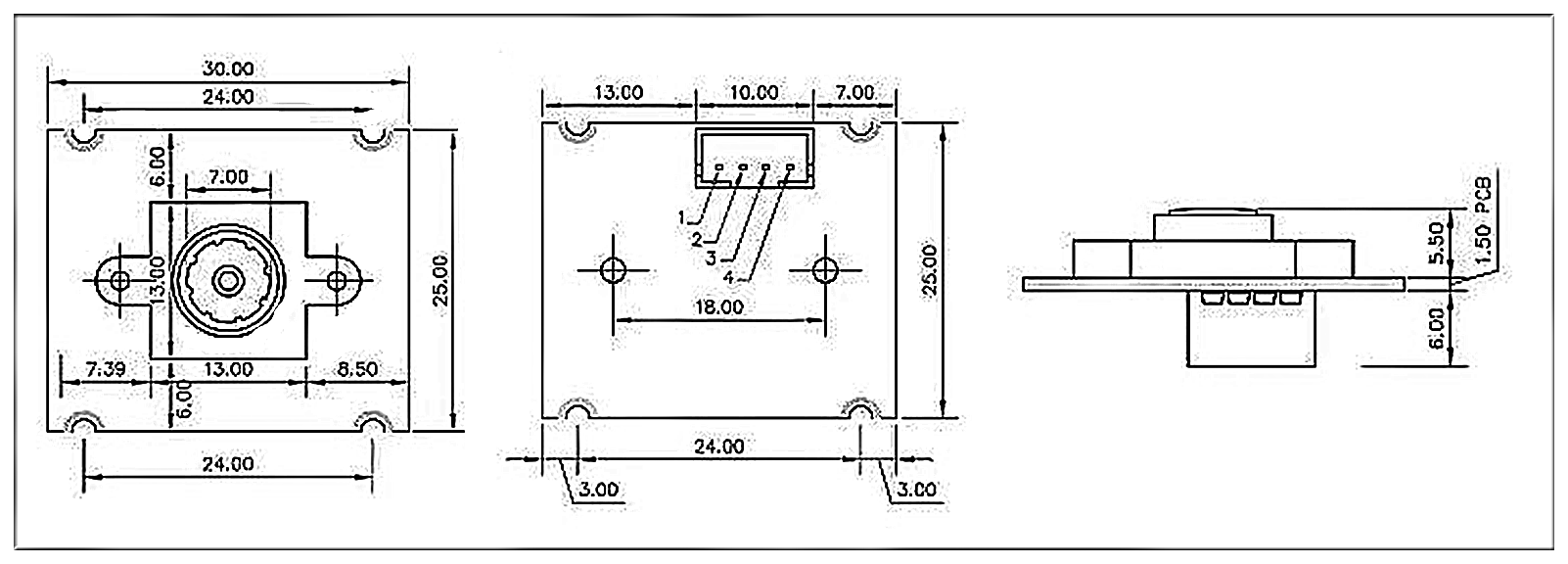

Board Size: 30x25mm
Mini illumination: 0.1lux
Power Supply: DC 5V
USB Protocol: USB2.0 HS/FS
Operating Voltage: 150mW- 200mW
OTG protocol: USB2.0 OTG
Night vision: without night vision
LED board power connector: Support, 2P-2.0mm socket
Support OS: WinXP/Vista/WIN7/WIN8 / Linux with UVC/ Mac-OS X 10.4.8 or later/ Wince with UVC, Android 4.0 or above
